Aortic Stenosis
Aortic stenosis is the most common valve lesion at the bedside and a core critical care echo competency, which is why it comes up again and again in exams. Grading it well demands both clean acquisition and sound interpretation, because severity is never a single number but a judgement built from the 2D appearance, the degree of calcification, and the Doppler findings. The classic pitfall is low-flow, low-gradient AS, where a low gradient hides severe disease in a low-output patient.
Pathophysiology
Mechanisms & aetiology
What is aortic stenosis?
- Obstruction to left-ventricular outflow from narrowing of the aortic valve, generating a systolic pressure gradient between the LV and the aorta.
- A normal aortic valve area is 3–4 cm²; obstruction becomes haemodynamically significant below about 1 cm².
- In UK adults the cause is almost always calcific degeneration.
To drive flow across the narrowing the LV develops concentric hypertrophy, which holds cardiac output steady for years. When it can no longer compensate, stroke volume falls — and the gradient can paradoxically drop even though the valve remains severely stenosed — and the patient decompensates.
What are the common causes of aortic stenosis?
| Category | Cause / feature |
|---|---|
| Degenerative (calcific) |
|
| Congenital |
|
| Rheumatic |
|
| Rare / other |
|
See Valve morphology & aetiology (Assessment approach) for the echo appearances of each.
What is aortic sclerosis?
Definition
- Aortic sclerosis
- A thickened, restricted aortic valve without significant obstruction to flow, with AV Vmax <2.5 m/s.
It is not a grade of aortic stenosis — it sits at the very start of the same calcific spectrum. It is common and rises with age, and matters mainly as a cardiovascular risk marker; roughly 2% of patients per year progress to stenosis. Routine echocardiographic surveillance is not recommended. GuidelineRing L, et al. Echocardiographic assessment of aortic stenosis: a practical guideline from the British Society of Echocardiography. Echo Res Pract 2021;8:G19–G59.
What is the natural history of calcific aortic stenosis?
- An active, atherosclerosis-like disease — not simple wear and tear — evolving over years to decades.
- Begins as aortic sclerosis: calcium at the cusp attachments and coaptation lines, with no obstruction to flow.
- Deposits then accumulate focally; leaflets stiffen and lose mobility and the orifice narrows, each leaflet involved separately and asymmetrically.
- Most sclerotic valves never progress — only ~2% per year develop stenosis.
- Once stenosis is established, a peak-velocity rise >0.3 m/s per year marks rapid progression and predicts a worse outcome.
Sources: Lindman et al. 2016 (Nat Rev Dis Primers); Otto & Prendergast 2014 (NEJM); Ring et al. 2021 (BSE, Echo Res Pract).
What does the obstruction do to the heart?
Pumping against the obstruction places a chronic pressure load on the left ventricle, and the LV adapts in ways visible on the same echo used to grade the valve:
- Concentric LVH — increased wall thickness and LV mass on 2D, as the ventricle hypertrophies to generate the pressure needed to drive flow across the valve.
- Diastolic dysfunction — the stiff, hypertrophied LV fills at high pressure (graded on mitral inflow and E/e'), becoming dependent on the atrial kick and on adequate filling time.
- Fixed stroke volume — the obstruction caps forward output, so the LVOT VTI cannot augment to meet a fall in afterload or a rise in demand.
Clinically, these produce the classic triad of angina, exertional syncope and dyspnoea, with heart failure the end stage once compensation fails.
What happens once aortic stenosis becomes symptomatic?
The hypertrophied LV stays symptom-free for years; once symptoms appear (angina, exertional syncope, breathlessness), untreated survival falls sharply — so symptom onset is the key trigger for valve replacement.
Echo features that mark severe / high-risk disease and prompt referral:
- Severe: peak velocity ≥4 m/s, mean gradient ≥40 mmHg, or valve area <1.0 cm².
- Very severe: peak velocity ≥5 m/s or mean gradient ≥60 mmHg.
- Impaired LV: ejection fraction <50%.
- Rapid progression: peak-velocity rise >0.3 m/s per year.
Why it matters in critical care: severe AS tolerates hypotension, tachyarrhythmia and vasodilatation poorly, so recognising it on a bedside scan directly changes peri-operative and ICU management (see At the bedside).
Source: Otto & Prendergast 2014 (NEJM).
↪ Indications and timing of AVR/TAVI are on the clinical Aortic Stenosis page.
Assessment approach
General approach
How do you assess aortic stenosis using echo?
Work through it in a logical order: define the valve and its aetiology, build severity from qualitative to quantitative measures, assess the secondary and associated effects, then integrate everything with the clinical picture.
Scan pathway
- Restriction to cusp opening — the defining feature
- Number of cusps — tricuspid vs bicuspid vs unicuspid
- Leaflet thickening & calcification — location and extent
- Commissural fusion
- Alternative pathology — sub-/supravalvular membrane; dynamic LVOT obstruction
- Degree of restriction to cusp opening
- AVA by planimetry — not recommended on TTE
- Restriction to cusp opening
- Timing of cusp closure
- Degree of turbulent flow
- Jet eccentricity
- Envelope height, shape & density
- Peak velocity
- Mean gradient

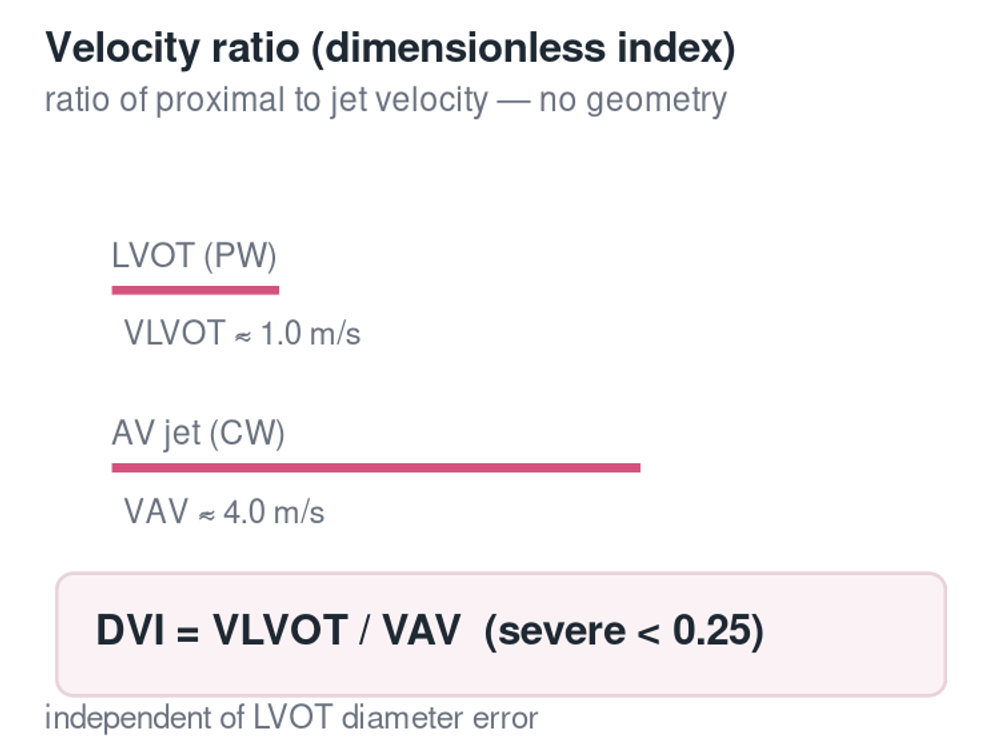

- Dimensionless index (DVI)

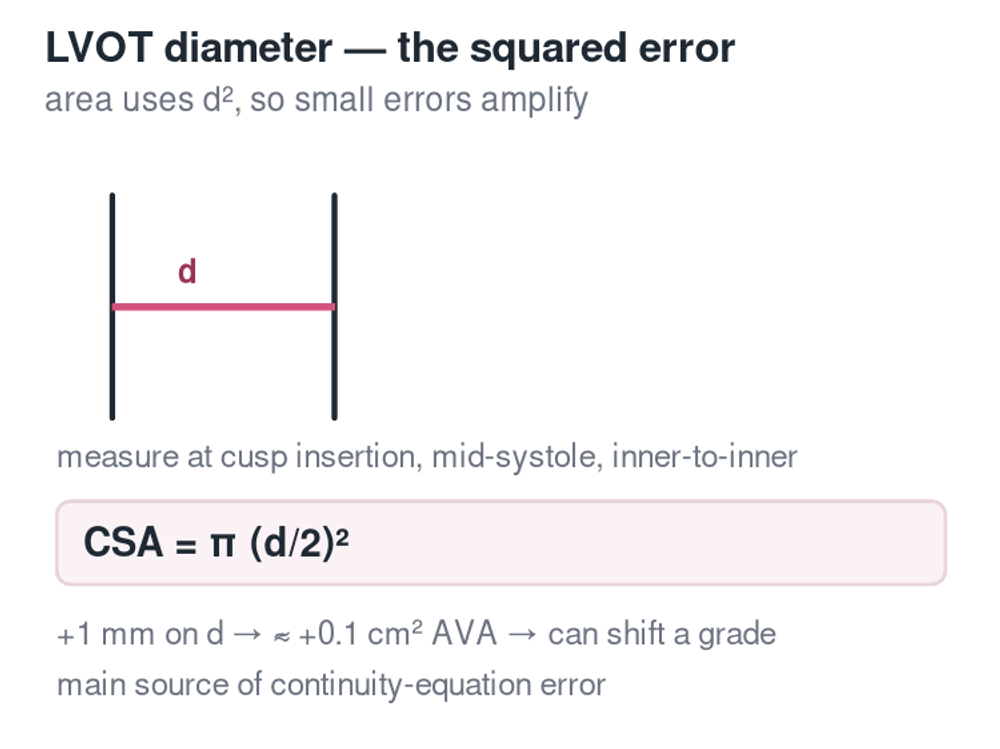

- AVA from 2D + PW + CW
- Indexed AVA — the anchor when parameters disagree
Low-flow, low-gradient: a small valve area with a low gradient. Check stroke volume and LV function before calling it severe.
- Haemodynamic effects — LV hypertrophy
- LV dimensions and volumes
- LV systolic and diastolic function
- Coexisting lesions — aortic regurgitation; mitral stenosis or regurgitation
- Associated pathology — aortic root / ascending aorta dilation
- Integrate echo findings with symptoms and clinical signs
- Account for low-flow states and discordant grading
- Use additional modalities where needed — stress echo, CT calcium score, invasive assessment
Image acquisition
Which acoustic windows and transducers are used to record the highest aortic velocity?
Transthoracic (TTE)
| Window | Best for in aortic stenosis |
|---|---|
| Parasternal long axis |
|
| Parasternal short axis (aortic valve) |
|
| Apical five-chamber |
|
| Apical three-chamber | Alternative alignment with the jet |
| Right parasternal | Often gives the highest velocity — easily missed |
| Suprasternal notch |
|
| Subcostal |
|
Transoesophageal (TOE)
| View | Best for in aortic stenosis |
|---|---|
| Mid-oesophageal aortic valve short axis |
|
| Mid-oesophageal aortic valve long axis |
|
| Mid-oesophageal ascending aorta long axis | Aortic root and ascending aorta |
| Deep transgastric five-chamber | Continuous-wave alignment with the jet — gradients and VTIs |
| Transgastric long axis | Alternative jet alignment for gradients |
Interrogate from every available window and report the highest velocity/gradient. Continuous-wave alignment is harder on TOE, so transthoracic windows usually give the best gradients.
What is the role of the standalone (Pedoff) continuous-wave probe?
A non-imaging dual-crystal CW transducer (pencil/Pedoff probe) gives a higher signal-to-noise ratio and easier transducer manipulation, and is recommended for recording the AS jet velocity. Provided the AS is not severe (<3 m/sec with good leaflet opening) a dual imaging-Doppler probe is acceptable. Care should be taken where the aetiology is a bicuspid aortic valve and the AS is severe, as it can be challenging to align accurately with a narrow jet; here colour Doppler can occasionally help.
IMAGE TO SOURCE — photo: standalone Pedoff / pencil CW probe [photo]
How do you optimise the 2D image when assessing aortic stenosis?
- Zoom on the valve and set depth and sector width to fill the screen with the region of interest.
- Optimise gain, focal position and tissue harmonics for clear leaflet definition.
- Use the highest frame rate that is practical (narrow the sector, reduce the depth).
- Position the patient well — left lateral for the parasternal and apical windows, right lateral decubitus for the right parasternal window.
- Use the ECG for timing and avoid foreshortening the LVOT and apex.
Valve morphology & aetiology
Which views show the aortic valve morphology?
Transthoracic (TTE)
| View | What it shows |
|---|---|
| Parasternal long axis (zoomed) |
|
| Parasternal short axis (aortic-valve level) |
|
Transoesophageal (TOE)
| View | What it shows |
|---|---|
| Mid-oesophageal aortic valve short axis (~30–60°) |
|
| Mid-oesophageal aortic valve long axis (~120–140°) |
|
↪ For how each cusp appears across these views and the full root anatomy, see Cardiac & Coronary Anatomy.
What should you assess on 2D imaging to help determine the aetiology and mechanism of AS?
Assess the valve systematically in the zoomed PLAX and PSAX views, then step out to the LVOT and root. Each feature points towards a mechanism.
The cusps
| Cusp feature | What it tells you |
|---|---|
| Number |
|
| Thickening & calcification |
|
| Mobility |
|
| Edges & commissures | Rolled, thickened edges with commissural fusion suggest rheumatic disease |
Shape & motion clues
| Sign | What it tells you |
|---|---|
| Doming | Systolic bowing of pliable cusps into the aorta — the hallmark of a bicuspid valve |
| Eccentric closure line | Off-centre diastolic closure line on M-mode also points to a bicuspid valve |
Surrounding structures
| Structure | What to measure / report |
|---|---|
| LVOT & annulus |
|
| Aortic root & ascending aorta | Dilatation is common with bicuspid valves — measure and report |
What are the common morphological variants seen in aortic stenosis?
| Feature | Calcific / degenerative | Bicuspid / unicuspid | Rheumatic |
|---|---|---|---|
| Key features |
|
|
|
How do you recognise a bicuspid aortic valve?
- In short axis, two functional cusps open to a "fish-mouth" (oval) orifice — judge cusp number in systole, not diastole.
- Systolic doming of the leaflets on the long-axis view (pliable cusps bowing into the aorta).
- An eccentric diastolic closure line on M-mode or the long-axis view.
- A raphe (fused commissure) can make a bicuspid valve look trileaflet in diastole — always confirm in systole.
- Commonest fusion is the right and left coronary cusps; look for associated root or ascending-aorta dilatation.
[VIDEO: PSAX bicuspid valve — fish-mouth systolic opening with a raphe]
What are the common bicuspid valve variants?
A bicuspid valve has two working cusps instead of three. First the plain-English bit:
- A raphe is a seam — a fibrous ridge where two cusps that should have been separate are fused together. It looks like a fake third cusp line, so a bicuspid valve can appear trileaflet in diastole. Always count the cusps that actually open in systole.
They are classified two ways.
1. By which cusps are fused (the practical, day-to-day description):
| Variant | Fused cusps | Notes | Appearance |
|---|---|---|---|
| Right–left (RL) | Right + left coronary |
| DIAGRAM — RL orifice (PSAX) |
| Right–non-coronary (RN) | Right + non-coronary |
| DIAGRAM — RN orifice (PSAX) |
| Left–non-coronary (LN) | Left + non-coronary | Rare | DIAGRAM — LN orifice (PSAX) |
2. By Sievers type — simply, how many raphes the valve has:
| Sievers type | Raphes | Notes |
|---|---|---|
| Type 0 | None | Two equal, truly separate cusps |
| Type 1 | One | Commonest; RL / RN / LN are all type 1 |
| Type 2 | Two | Rare |
In short: RL / RN / LN names which cusps are fused; the Sievers type counts the raphes.
Why can a heavily calcified aortic valve be hard to classify?
- Dense calcification throws bright echoes and acoustic shadows that obscure the cusps and commissures, so a calcified bicuspid and tricuspid valve can look identical.
- The same shadowing makes planimetry of the orifice unreliable.
- Judge cusp number in systole, and use TOE or 3D for clearer leaflet definition when the transthoracic view is ambiguous.

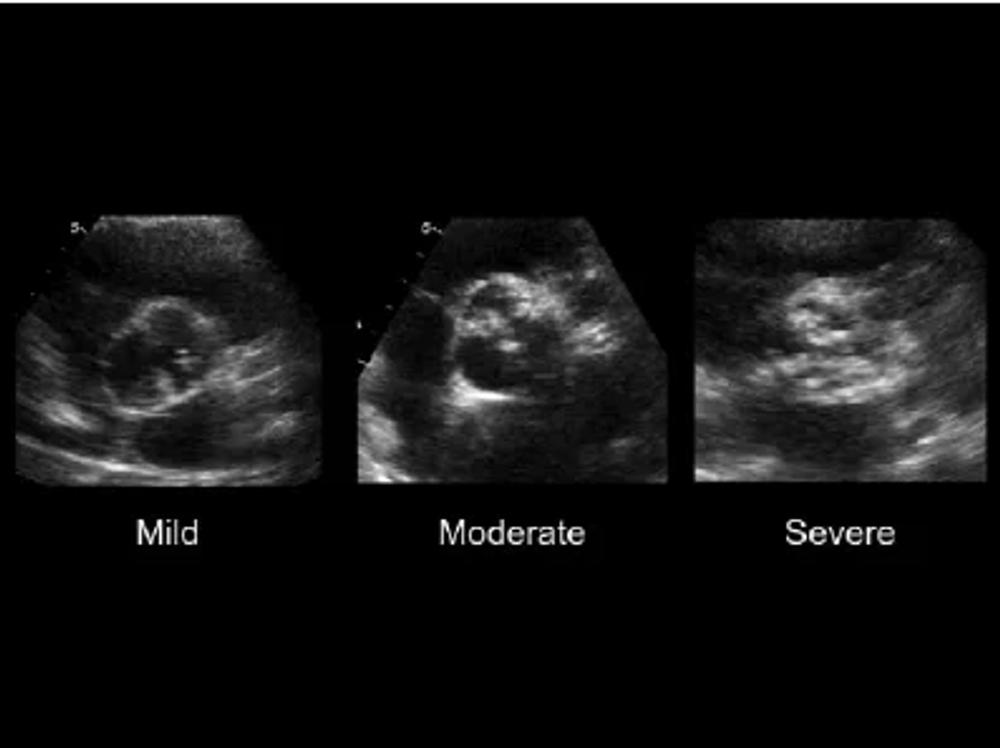

How do you grade aortic valve calcification on echo?
Grade it semiquantitatively, best seen on the zoomed short-axis view (the long-axis, A3C and A5C also help):
- Mild — small, isolated echo-dense spots.
- Moderate — multiple larger spots.
- Severe — extensive thickening and calcification of all cusps.
Echo cannot reliably separate dense fibrosis from calcium and underestimates the true burden, so CT quantifies it better. Calcification grade carries prognostic weight, and bicuspid valves calcify earlier than tricuspid.
↪ CT aortic-valve calcium scoring (sex-specific Agatston thresholds) is used to arbitrate discordant low-gradient cases — see Discordant & low-flow, low-gradient AS.
How can M-mode be used in the assessment of aortic stenosis?
M-mode is a supportive, qualitative tool in AS — it does not grade severity, but it gives a quick read on leaflet motion and the level of obstruction.
- Cusp separation — the maximal systolic leaflet separation; <12 mm suggests significant obstruction (a crude marker, not a severity measure).
- Thickened, calcified leaflets throw multiple dense echoes and open poorly.
- LV ejection time can be read from how long the cusps stay open.
- Early systolic partial closure of the valve points to dynamic subvalvular obstruction rather than valvular AS.
IMAGE TO SOURCE — real echo: M-mode of the aortic valve showing reduced cusp separation [trace]
Doppler assessment & differentials
Which Doppler modalities are used in aortic stenosis, and what is each for?
| Modality | What it is for in AS |
|---|---|
| Colour Doppler |
|
| Pulsed-wave (PW) |
|
| Continuous-wave (CW) |
|
In practice: colour to find the jet, CW for the transvalvular velocities, PW for the LVOT — together they drive the gradient and the continuity equation.
What does colour Doppler show in aortic stenosis?
Colour Doppler is qualitative — it does not grade severity, but it finds the jet and guides the CW interrogation.
- Normal — brief, laminar, low-velocity flow with little or no aliasing.
- Aortic stenosis — a turbulent, aliased mosaic jet from the valve; where laminar flow turns turbulent marks the level of obstruction (valvular, sub- or supravalvular).

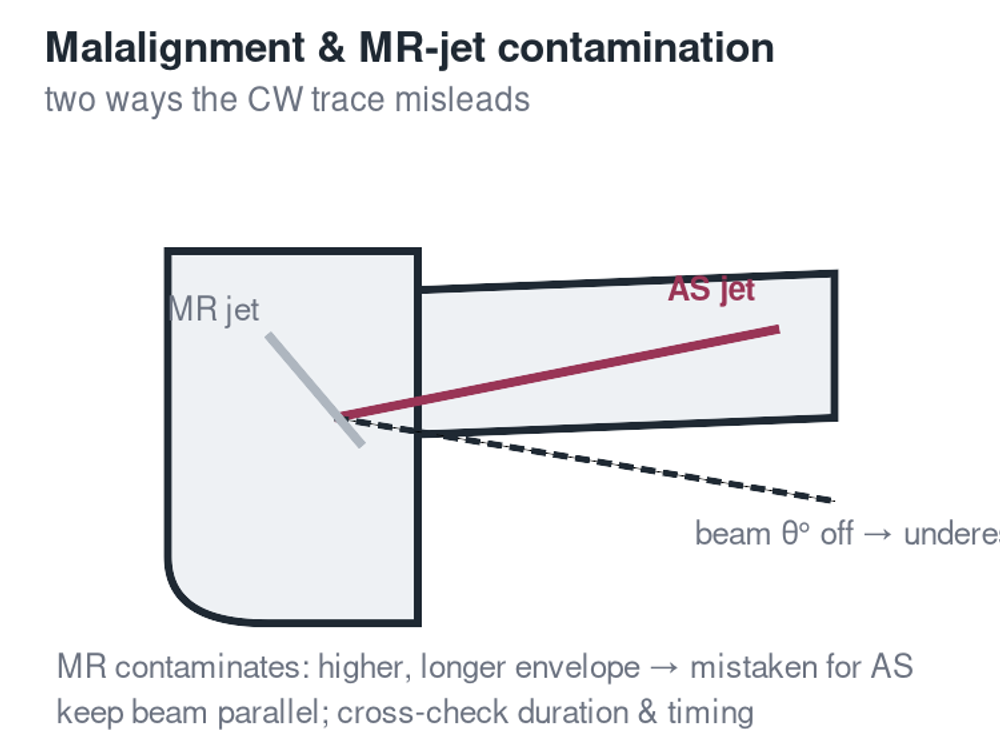

- Use it to aim the CW beam, especially for eccentric jets, and to spot a second or paravalvular jet.
- Screen for coexisting aortic and mitral regurgitation at the same time.
Find and aim with colour, then switch to CW for the numbers.
[VIDEO: colour Doppler of turbulent flow across the aortic valve]
What does the CW Doppler signal of aortic stenosis look like?
On CW from an apical window the AS jet is a systolic envelope below the baseline, framed by the aortic valve opening and closing clicks.
- Timing — starts after isovolumetric contraction (after the QRS and first heart sound) and ends before isovolumetric relaxation; confined to ejection.
- Shape with severity — mild AS peaks early and looks triangular; severe AS is rounded and peaks in mid-systole as ejection lengthens.
A late-peaking, dagger-shaped envelope instead points to dynamic obstruction (see fixed vs dynamic).

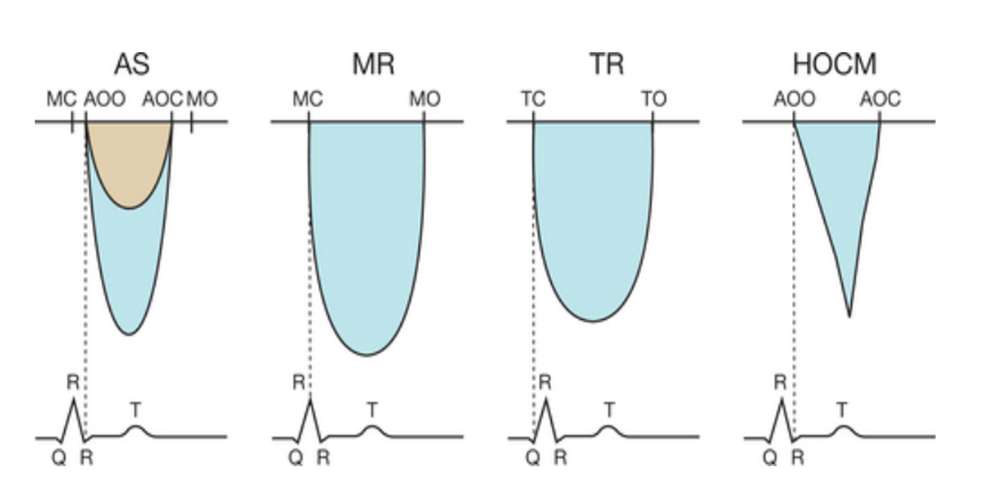

| Signal | Envelope shape | Spans (clicks) | Key clue |
|---|---|---|---|
| Aortic stenosis | Rounded, peaks mid-systole | Aortic open → aortic close |
|
| Mitral regurgitation | Tall, holosystolic | Mitral close → mitral open |
|
| Tricuspid regurgitation | Holosystolic, lower velocity | Tricuspid close → tricuspid open | Varies with respiration |
| HOCM | Late-peaking dagger | Aortic open → aortic close | Worsens with unloading / Valsalva |
How do you optimise the spectral Doppler signal?
Trace the dense outer (modal) edge of the CW waveform; ignore the faint linear transit-time artefact.
- Sweep speed 50–100 mm/s.
- Average three or more beats (at least five consecutive in atrial fibrillation); avoid the post-ectopic beat.
- Interrogate from multiple windows and keep the highest signal.

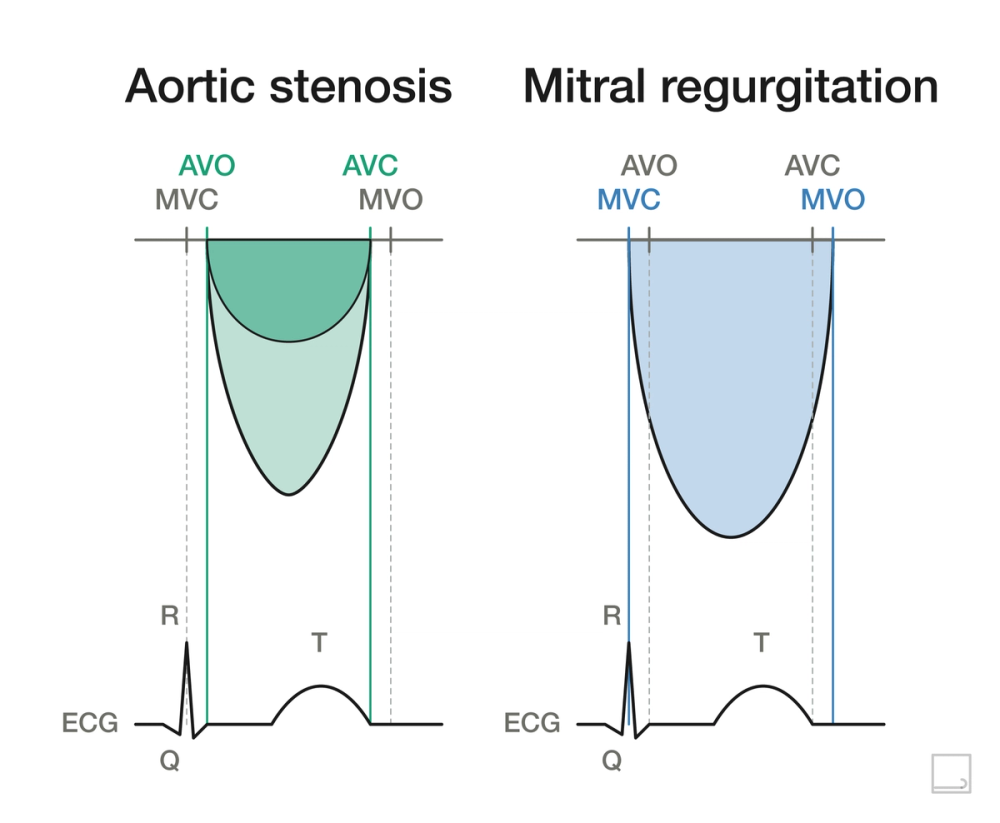

How do you differentiate the CW Doppler trace of aortic stenosis from mitral regurgitation?
Both appear below the baseline from an apical window, so they are easily confused. The MR jet is longer, higher-velocity and later-peaking; the AS jet is confined to ejection, framed by the aortic valve clicks.
| Feature | Aortic stenosis | Mitral regurgitation |
|---|---|---|
| Shape & peak |
| More uniform, holosystolic |
| Peak velocity | Lower | Higher — often exceeds the AS jet |
| Duration | Shorter — ejection only | Longer — spans all of systole |
| Timing | Starts after IVCT, ends before IVRT (between the aortic valve clicks) | From mitral closure to mitral opening (the whole of systole) |
Reading the timing in practice — put the ECG on screen and use a fast sweep (100 mm/s):
- AS leaves a gap after the QRS (the isovolumetric contraction time) before flow starts; the jet then sits between the aortic opening and closing clicks and stops before diastole.
- MR begins at the QRS / first heart sound (mitral closure) with no gap, and runs on past the aortic closing click into early diastole, until mitral opening.
- So MR is longer at both ends — it fills the isovolumetric periods AS cannot, and on an overlaid trace its envelope encloses the AS one.
Quick rule: a gap after the QRS with the signal ending at the aortic click = AS; a signal that starts with the QRS and spills past the aortic click = MR.
How does the Doppler signal differ between dynamic and fixed obstruction?
Valvular aortic stenosis is a fixed obstruction; subaortic obstruction (most often HOCM) is dynamic. The two are separated by the shape of the CW envelope and by how the gradient responds to loading.
- Fixed AS — a rounded, roughly symmetric envelope that peaks in mid-systole; the gradient is stable beat-to-beat.
- Dynamic (HOCM) — a concave-upward, late-peaking “dagger” as obstruction builds through mid-to-late systole.
- Response to load — dynamic obstruction increases with anything that empties the LV or boosts contractility (Valsalva strain, standing, the beat after an ectopic); fixed AS barely changes.
- Post-ectopic beat (Brockenbrough–Braunwald) — in HOCM the gradient rises but the aortic pulse pressure falls; in fixed AS both rise.
- A fixed subaortic membrane gives a high gradient with near-normal leaflets and a coarse, “rough” systolic trace — localise the velocity step-up below the valve on colour/PW.
In practice — a late-peaking dagger should stop you before you call severe AS: image the subaortic area and LV, and provoke the gradient (Valsalva) to expose dynamic obstruction.
IMAGE TO SOURCE — real echo: CW comparison of fixed (rounded) vs dynamic (late-peaking dagger) obstruction [trace]
What can mimic aortic stenosis (the differential diagnosis of LV outflow tract obstruction)?
Not all LV outflow obstruction is valvular aortic stenosis. The CW trace looks broadly similar wherever the obstruction sits, so localise it by where the velocity steps up on pulsed and colour Doppler.
| Type | Key features | Velocity step-up |
|---|---|---|
| Fixed subvalvular |
| Below the valve |
| Dynamic (HOCM) |
| Below the valve, mid–late systole |
| Supravalvular |
| Above the valve |
Severity & valve haemodynamics
Grading — overview
Which measurements are used to grade aortic stenosis severity?
Build the grade by layering the modalities from qualitative to quantitative — no single measure stands alone.
| Modality | Qualitative | Semi-quantitative | Quantitative |
|---|---|---|---|
| 2D & M-mode | Leaflet morphology & opening • Calcification (presence, pattern) | Calcium burden grade • M-mode cusp separation | LVOT diameter • Planimetered AVA (not routine on TTE) |
| Colour Doppler | Transvalvular jet & direction • Aligns the CW beam | — | — |
| Spectral Doppler (CW & PW) | — | — | Peak velocity (Vmax) • Mean gradient • LVOT velocity / VTI • Dimensionless index |
| Combined (2D + Doppler) | — | — | Continuity-equation AVA • Indexed AVA (AVAi) |
What values define each grade of aortic stenosis?
Severity thresholds, from aortic sclerosis through to very severe — read the core measures together. GuidelineRing L, et al. Echocardiographic assessment of aortic stenosis: a practical guideline from the British Society of Echocardiography. Echo Res Pract 2021;8:G19–G59.
| Grade | Peak velocity (m/s) | Mean gradient (mmHg) | AVA (cm²) | Indexed AVA (cm²/m²) | Dimensionless index |
|---|---|---|---|---|---|
| Aortic sclerosis | <2.5 | – | – | – | – |
| Mild | 2.5–2.9 | <20 | >1.5 | >0.85 | >0.5 |
| Moderate | 3–3.9 | 20–39 | 1.0–1.5 | 0.6–0.85 | 0.25–0.5 |
| Severe | 4–4.9 | 40–59 | <1.0 | <0.6 | <0.25 |
| Very severe | ≥5 | ≥60 | ≤0.6 | – | – |
Aortic stenosis — echo surveillance intervals?
Typical surveillance intervals by severity. TextbookRing et al. Echocardiographic assessment of aortic stenosis. Echo Res Pract 2021.
| Severity | Surveillance interval |
|---|---|
| Mild (Vmax <3 m/s) | 3–5 years |
| Moderate (3–3.9 m/s) | 1–2 years |
| Severe (≥4 m/s) | 6 months |
Peak velocity
What are the principles of using peak velocity in the assessment of aortic stenosis?
Peak aortic jet velocity (Vmax) is the highest velocity through the stenotic valve, recorded with continuous-wave (CW) Doppler — the single best-validated marker of AS severity.
- Why it tracks severity — conservation of mass: as the orifice narrows the velocity must rise, so Vmax follows the obstruction.
- Waveform — with worsening AS the jet is higher and peaks later in systole; the envelope becomes more rounded as ejection is prolonged.
- Link to gradient — Vmax converts to the transvalvular pressure gradient through the simplified Bernoulli equation, ΔP = 4V².
IMAGE TO SOURCE — real echo: labelled CW jet across a stenotic aortic valve [trace]
Which views are used to assess peak velocity in aortic stenosis?
Alignment is everything: the CW beam must run parallel to the jet — an intercept angle ≤15° keeps velocity underestimation under 5%. Record from the same window on serial studies so changes are real, not positional.
Sweep every available window and keep the single highest signal:
| Approach | Window |
|---|---|
| Transthoracic | Apical 5-chamber |
| Transthoracic | Apical 3-chamber |
| Transthoracic | Right parasternal (right lateral decubitus, pencil probe) |
| Transthoracic | Suprasternal |
| Transthoracic | Subcostal |
| Transoesophageal | Deep transgastric 5-chamber |
| Transoesophageal | Transgastric long axis (alignment harder than TTE) |
How is peak velocity measured in the assessment of aortic stenosis?
Use CW Doppler — the high velocities in AS (3–6 m/s) exceed the Nyquist limit of pulsed-wave. A dedicated non-imaging pencil (Pedoff) probe gives the best signal and alignment thanks to its small footprint.
Optimise the trace: raise the wall filter, drop the Doppler gain, set sweep speed to 100 mm/s and the velocity scale ~1 m/s above the expected jet.
Trace the outer edge of the dense modal envelope (exclude fine linear over-shoot artefact). This single trace yields Vmax, the VTI (for the continuity equation) and the mean gradient.
Average ≥3 beats in sinus rhythm and ≥5 in AF; avoid the beat after an ectopic. Take the maximal Vmax across all windows, regardless of which window produced it.
IMAGE TO SOURCE — real echo: CW from multiple windows, showing selection of the highest velocity [trace]
Which equations are used in the assessment of peak velocity?
Peak velocity (Vmax) is measured directly — there is no equation for Vmax itself.
It converts to a peak instantaneous pressure gradient through the simplified Bernoulli equation: ΔP = 4V².
Use the expanded form ΔP = 4(V²max − V²LVOT) when the LVOT velocity is >1.5 m/s or the AV velocity is <3.0 m/s — otherwise ignoring the proximal velocity overestimates the gradient.
The Doppler peak instantaneous gradient is higher than the peak-to-peak gradient measured at cardiac catheterisation — they are not interchangeable.
Which values of peak velocity are used to grade severity of aortic stenosis?
Typical values used to grade severity. TextbookRing et al. Echocardiographic assessment of aortic stenosis. Echo Res Pract 2021.
| Severity | Peak velocity (m/s) |
|---|---|
| Aortic sclerosis | <2.5 |
| Mild | 2.5–2.9 |
| Moderate | 3–3.9 |
| Severe | 4–4.9 |
| Very severe | ≥5 |
What are the advantages of peak velocity in the assessment of aortic stenosis?
| Category | Advantage |
|---|---|
| Evidence & guidelines | Best-validated marker — underpins guideline thresholds and outcome data. |
| Robustness | Reproducible — low observer variability, reliable for serial follow-up. |
| Sensitive to progression — detects change earlier than valve area. | |
| Practicality | Directly measured — no geometric assumptions or derived maths. |
What are the limitations of peak velocity in the assessment of aortic stenosis?
| Category | Limitation |
|---|---|

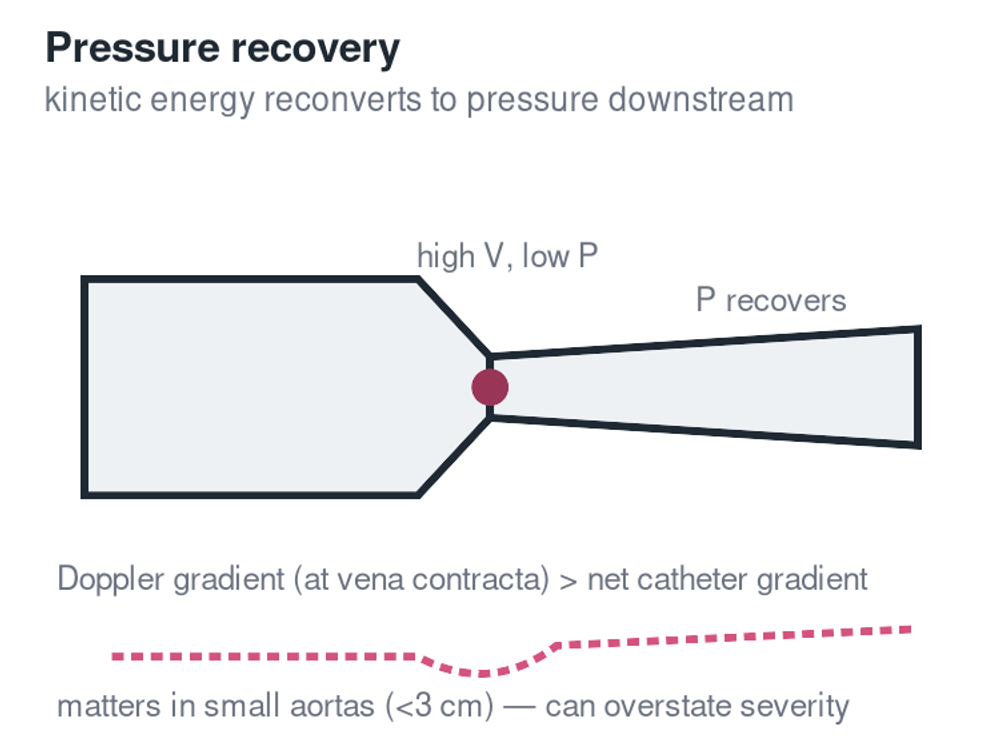

| Patient & anatomy | Pressure recovery — in a small aorta (under ~3 cm) some of the jet's energy converts back to pressure just beyond the valve, so the Doppler reads higher than the true net gradient and overstates severity. |
| Flow & loading | High-output states — anaemia, fever, sepsis or coexisting AR drive more blood across the valve, lifting the velocity so a moderate valve looks severe. |
| Low-output states — poor LV function or a low stroke volume push less blood across, so the velocity falls and severe stenosis is underestimated. | |
| Measurement & method | Angle dependence — if the beam is off-axis, or the highest-velocity window (right parasternal, suprasternal, subcostal) is missed, the peak is underestimated. |
| Jet contamination — an MR jet or dynamic LVOT (HOCM) obstruction lies in the same part of the trace and can be mistaken for the AS jet. |
Parked content — to place (peak velocity)
Mean gradient
What are the principles of using mean gradient in the assessment of aortic stenosis?
The mean gradient is the average pressure difference across the valve through systole, derived from the CW Doppler velocities — a flow-dependent but well-validated marker of severity.
- Why velocity rises — conservation of mass: as the orifice narrows, the flow velocity must increase proportionately.
- From velocity to pressure — the gradient is derived from the velocities using the simplified Bernoulli equation, ΔP = 4V².
- How it's taken — record the maximal transaortic signal with CW Doppler and trace the envelope; the machine integrates it to the mean gradient over the ejection period.
IMAGE TO SOURCE — real echo: machine-traced CW envelope returning the mean gradient [trace]
Which views are used to assess mean gradient in aortic stenosis?
Good alignment of continuous wave (CW) Doppler is essential for determining mean gradient
Should always be recorded from the same acoustic window as the previous exams
- Transthoracic
- Apical 5-chamber (use with steep left lateral position) / Apical 3-chamber / Subcostal short axis / Right parasternal, suprasternal, and sometimes subcostal approaches using a small, dedicated CW Doppler transducer (pencil probe or Pedoff transducer).
- Transoesophageal
- Deep transgastric 5-chamber view / Transgastric long axis view
How is mean gradient measured in the assessment of aortic stenosis?
Text
Which values of mean gradient are used to grade severity of aortic stenosis?
Typical values used to grade severity. GuidelineRing et al. Echocardiographic assessment of aortic stenosis. Echo Res Pract 2021.
| Severity | Mean gradient |
|---|---|
| Mild | <20 mmHg |
| Moderate | 20–39 mmHg |
| Severe | 40–59 mmHg |
| Very severe | ≥60 mmHg |
What are the advantages of mean gradient in the assessment of aortic stenosis?
| Category | Advantage |
|---|---|
| Evidence & guidelines | Guideline threshold — ≥40 mmHg is a primary severe-AS criterion. |
| Robustness | Whole-ejection average — less swayed by a single peak artefact than Vmax. |
| Tracks Vmax — a built-in cross-check on the spectral trace. | |
| Practicality | Machine-derived — computed automatically from the traced envelope. |
What are the limitations of mean gradient in the assessment of aortic stenosis?
| Category | Limitation |
|---|---|
| Flow & loading | Low-output / LFLG — in a low-output or low-flow low-gradient state the mean gradient sits below the severe threshold even when the valve is truly severe, so it underestimates severity. |
| High-output states — a high-output state can push the mean gradient over the severe threshold across a valve that is only moderate, overstating severity. | |
| Measurement & method | Envelope quality — the gradient is only as good as the traced envelope, so a faint or poorly aligned signal gives a falsely low value. |
| Jet contamination — an overlapping MR jet or dynamic obstruction adds velocity to the trace and inflates the gradient. | |
| Must trace, not average — it cannot be read off the mean velocity; it has to be obtained by tracing the whole envelope, so any shortcut introduces error. |

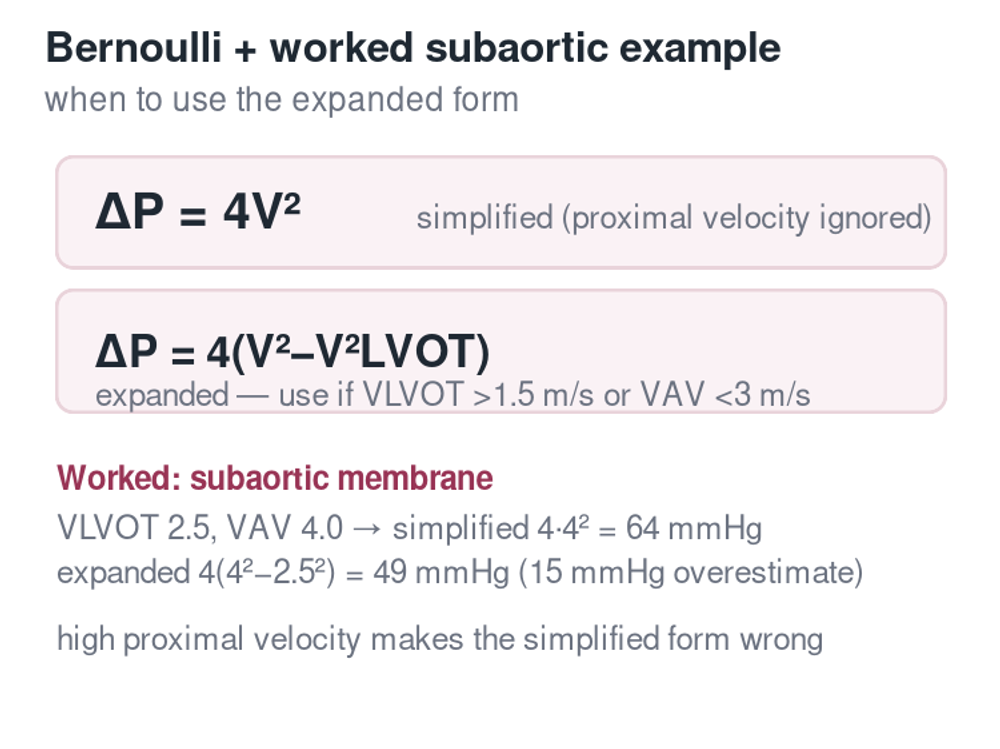

How is the pressure gradient calculated (the Bernoulli equation)?
The transvalvular pressure gradient is derived from velocity using the simplified Bernoulli equation: ΔP = 4V².
Use the expanded form ΔP = 4(V²max − V²LVOT) when the proximal (LVOT) velocity is >1.5 m/s or the aortic velocity is <3.0 m/s — otherwise ignoring the proximal velocity overestimates the gradient.
This is the peak instantaneous gradient, which is higher than the peak-to-peak gradient measured at catheterisation — the two are not interchangeable.
The mean gradient cannot be taken from the mean velocity; the machine integrates 4V² across the traced CW envelope.
In practice — trace the dense outer edge of the envelope and let the software return the mean gradient; always report peak velocity and mean gradient together.
Velocity ratio (dimensionless index)
What are the principles of using the velocity ratio (dimensionless index)?
The velocity ratio (dimensionless index, DVI) is the ratio of the LVOT VTI to the aortic-valve VTI.
- What it does — expresses severity as a ratio, sidestepping the error-prone LVOT diameter measurement the continuity equation depends on.
- Threshold — a value below 0.25 indicates severe AS, independent of body size.
Which views are used to assess the velocity ratio in aortic stenosis?
Good alignment of continuous wave (CW) Doppler is essential for determining velocity ratio
Should always be recorded from the same acoustic window as the previous exams
- Transthoracic
- Apical 5-chamber (use with steep left lateral position) / Apical 3-chamber / Subcostal short axis / Right parasternal, suprasternal, and sometimes subcostal approaches using a small, dedicated CW Doppler transducer (pencil probe or Pedoff transducer) /
- Transoesophageal
- Deep transgastric 5-chamber view / Transgastric long axis view /
How do you measure the velocity ratio?
IMAGE TO SOURCE — real echo: paired PW (LVOT) and CW (AV) traces for the velocity ratio [trace]
Which equations are used in the calculation of the velocity ratio?
It is acceptable to use either velocity or VTI in the equation:
orVTI_LVOT/VTI_AS }
Which values of velocity ratio are used to grade severity of aortic stenosis?
| Severity | Velocity ratio |
|---|---|
| Mild | >0.5 |
| Moderate | 0.25-0.5 |
| Severe | <0.25 |
What are the advantages of the velocity ratio in the assessment of aortic stenosis?
The dimensionless index trades away an absolute, validated valve area to dodge the one big LVOT-diameter error — so it is a cross-check, reached for when that diameter is the weak link (poor PLAX, heavy calcification), rather than the reference measure.
| Category | Advantage |
|---|---|
| Practicality | No LVOT diameter needed — skips the squared-diameter measurement that dominates continuity error. |
| Robustness | Relatively flow-independent — more stable than gradient when flow varies. |
| Good for serial follow-up — corrects for LV function, stroke volume and output. |
What are the limitations of the velocity ratio in the assessment of aortic stenosis?
| Category | Limitation |
|---|---|
| Patient & anatomy | Atypical LVOT size — the ratio only cancels out LVOT size on the assumption that the outflow tract is of typical proportions; an unusually large or small LVOT still distorts it. |
| Measurement & method | Two-trace dependence — it still relies on two clean, well-aligned and correctly-timed traces (pulsed-wave in the LVOT and continuous-wave across the valve); a poor recording of either makes it unreliable. |
| Less validated — it is less well validated against outcomes than gradient or valve area, so it is best used to support the other measures rather than as the sole arbiter. |
Continuity-equation valve area
What are the principles of using the continuity equation for valve area?
The continuity equation gives the effective aortic valve area from one simple idea: in a single heartbeat the same volume of blood that passes through the LVOT must pass through the valve. If you know the flow on one side and the velocity on the other, you can solve for the area you cannot measure directly.
- Conservation of mass — stroke volume is identical at the LVOT and at the valve, so CSA(LVOT) × VTI(LVOT) = AVA × VTI(AV). As the orifice narrows, velocity must rise to keep that volume constant, and the equation reads that rise back as a smaller area.
- Why it is the reference measure — because it weighs the valve against the patient’s own LVOT flow, it stays valid when the gradient falls in a low-output state — which is exactly why it is the arbiter in low-flow, low-gradient AS.
- What you measure — the LVOT diameter in a zoomed PLAX (cross-sectional area = π(d/2)²), the LVOT velocity-time integral by pulsed-wave in the apical 5-chamber, and the aortic-valve VTI from the continuous-wave jet aligned to flow; average several cycles in AF.
- What it actually gives — the effective orifice area at the vena contracta, slightly smaller than the anatomical area because the jet keeps narrowing just beyond the leaflets. That effective area is the clinically validated number — the severity thresholds are built on it.
In practice — the result is only as good as its weakest input, the squared LVOT diameter; see the equation below and the pitfalls that follow.
What is the continuity equation for aortic valve area?
Continuity equation (aortic valve area)
- Aortic valve area
- cm²
- LVOT cross-sectional area
- cm²
- LVOT velocity–time integral (pulsed-wave)
- cm
- Aortic-valve velocity–time integral (continuous-wave)
- cm
GivenLVOT diameter = 2.0 cm → CSA = 3.14 cm², VTI(LVOT) = 20 cm, VTI(AV) = 80 cm
Severe AS (<1.0 cm²)
Conservation of mass: the stroke volume through the LVOT must equal the stroke volume through the valve. Since SV = CSA × VTI, measuring the LVOT and the two velocities lets you solve for valve area.
How is the continuity-equation valve area measured, and from which views?
Aortic valve area comes from three Doppler measurements, each taken from the window that best lines the beam up with flow:
| Measurement | How it is taken |
|---|---|
| CSA (LVOT) | Zoomed PLAX — LVOT diameter in mid-systole, inner edge to inner edge at the annulus; CSA = π × (D/2)² |
| VTI (LVOT) | Pulsed-wave Doppler in the LVOT, just proximal to the valve |
| VTI (AV) | Continuous-wave Doppler across the valve — trace the highest-velocity envelope |
| Measurement | Transthoracic | Transoesophageal |
|---|---|---|
| CSA (LVOT) | Zoomed PLAX | Mid-oesophageal LVOT |
| VTI (LVOT) | Apical 5-chamber | Deep transgastric |
| VTI (AV) | Apical 5-chamber / right parasternal / suprasternal | Transgastric / deep transgastric |
In practice — the LVOT diameter is squared, so it dominates the error budget; a clean, on-axis PLAX measurement matters more than any other single step.
IMAGE TO SOURCE — real echo: montage of PLAX LVOT diameter, PW LVOT VTI and CW AV VTI [echo]
Which values of continuity-equation valve area (indexed and unindexed) grade severity?
| Parameter | Mild | Moderate | Severe | Very Severe |
|---|---|---|---|---|
| Valve Area (AVA) | >1.5 cm2 | 1.0-1.5 cm2 | <1.0 cm2 | ≤0.6 cm2 |
| Indexed Valve Area (AVA/BSA) | >0.85 cm2/m2 | 0.60-0.85 cm2/m2 | <0.60 cm2/m2 | - |
When should the continuity-equation valve area be indexed?
In patients at the extremes of size, indexing for body surface area (BSA) has been proposed, with a cut-off value of less than 0.6 cm²/m² BSA indicating critical AS.
This can be helpful in patients with an unusually small BSA.
What are the advantages of the continuity-equation valve area?
| Category | Advantage |
|---|---|
| Evidence & guidelines | Reference quantitative measure — the arbiter when gradient and velocity disagree. |
| Robustness | Largely flow-independent — stays valid when gradients fall in low-flow states. |
| Corrects for flow — comparable across serial scans (LV function, SV, output). | |
| Practicality | Indexable — adjust for body size (AVAi). |
What are the limitations of the continuity-equation valve area?
| Category | Limitation |
|---|---|
| Patient & anatomy | Geometric assumption — the equation assumes a circular LVOT, but it is usually oval; treating an oval outflow tract as a circle underestimates its area and the valve area. |
| Measurement & method | LVOT diameter is squared — it is the dominant source of error: a 1 mm slip (from a calcified annulus, a sigmoid septum, or a poor parasternal view) shifts the valve area by roughly 0.1 cm². |
| PW sample position — the LVOT velocity sample must sit just proximal to the valve; too close it reads too high and overestimates valve area, too far into the ventricle it reads too low and underestimates it. | |
| Angle dependence — the aortic velocity-time integral still needs a well-aligned continuous-wave envelope, with the same caveats as peak velocity. | |
| Effective, not anatomic — it gives the effective orifice area, is flow-dependent, and cannot assess a TAVI prosthesis; for those, use the gradient and velocity ratio. |
Planimetry
What are the principles of using planimetry in the assessment of aortic stenosis?
Planimetry measures the anatomical valve-orifice area directly, by tracing it on a short-axis image.
- How — trace the orifice at the leaflet tips in mid-systole, on a 2D PSAX view or a 3D zoom acquisition.
- Strength — a direct anatomical measure, independent of flow and pressure, so it can help in low-flow or ambiguous-gradient cases.
- Limitation — heavy calcification blurs the orifice and TTE planimetry is unreliable; TOE/3D is better. Not a routine measurement — reserved for selected patients.
IMAGE TO SOURCE — real echo: PSAX planimetry of the aortic-valve orifice [echo]
How is planimetry performed in the assessment of aortic stenosis?
| Category | Key points |
|---|---|
| Imaging setup | Use parasternal short-axis view (2D) or 3D zoom acquisition centred on the aortic valve. ECG gating essential to capture mid-systole. |
| Plane & timing | Identify the valve tips in mid-systole — the narrowest orifice is measured. Ensure perpendicular imaging to the valve plane. |
| Optimisation tips | Use a zoomed view for spatial detail; avoid shadowing or dropout; adjust gain and compression for clear leaflet definition. |
| Measurement technique | Trace the inner edge of the valve orifice (not the leaflet edges). Use a freeze-frame in mid-systole. Do not include calcified areas outside the orifice. |
| Avoid pitfalls | Do not measure too basally (annular plane) or too distally (LVOT); shadowing and poor resolution can lead to over- or underestimation. |
| Best practice | Confirm the valve level in multiple cardiac cycles. In 3D, use multiplanar reconstruction for optimal plane alignment. |
IMAGE TO SOURCE — real echo: 3D TOE planimetry of the aortic valve [echo]
Which views are used for planimetry in aortic stenosis?
- Transthoracic
- Text
- Transoesophageal
- Text
Which values of planimetered aortic valve area are used to grade severity?
| Severity | Valve area (cm2) |
|---|---|
| Mild | >1.5 |
| Moderate | 1.0-1.5 |
| Severe | <1.0 |
| Critical | <0.6 |
What are the advantages of planimetry in the assessment of aortic stenosis?
| Category | Advantage |
|---|---|
| Robustness | Direct anatomic area — no flow, gradient or Doppler-angle dependence. |
| Independent of flow equations — free of continuity / Bernoulli assumptions. | |
| Useful in low-flow / discordant AS — confirms severity when gradient and velocity disagree. | |
| Helpful in bicuspid / calcified valves — a visual, traceable confirmation of restriction. | |
| Practicality | 3D improves reliability — multiplanar alignment reduces wrong-plane error. |
What are the limitations of planimetry in the assessment of aortic stenosis?
| Category | Limitation |
|---|---|
| Patient & anatomy | Calcification — heavy leaflet calcification throws bright echoes with blurred, poorly-defined edges, so the true orifice border is hard to trace. |
| 3D orifice — the stenotic orifice is a complex three-dimensional funnel, and a single 2D plane cut too high or too low gives the wrong area. | |
| Measurement & method | Shadowing / dropout — acoustic shadowing and dropout from calcium degrade the transthoracic image further, compounding the error. |
| TTE vs 3D TOE — a freehand TTE trace is the least reliable approach, so planimetry is reserved for when Doppler is unreliable and is best done on an aligned 3D transoesophageal study. |
Pitfalls & sources of error
What are the common pitfalls when measuring the LVOT and continuity-equation valve area?
Measure the LVOT diameter at the cusp insertion (annulus), inner-edge to inner-edge, mid-systole, in a zoomed PLAX view, excluding eccentric calcification; do not assume 2 cm. Because CSA uses the radius squared, a 1 mm error is roughly a 0.1 cm² error in AVA.
Underestimating LVOT diameter overestimates severity; an elliptical LVOT assumed circular overestimates severity (consider 3D planimetry of the LVOT area). A PW sample placed too close to the valve underestimates severity; too far into the LV overestimates it. Do not use the inner phantom envelope seen within the CW trace.
What is pressure recovery and when does it matter?
Pressure recovery is the reconversion of kinetic energy across the narrowed valve back to potential energy in the ascending aorta. It must be taken into account in patients with an ascending aortic diameter of less than 30 mm, otherwise the gradient may be significantly overestimated.
How can adjacent MR, Doppler malalignment and flow state cause error?
Contamination with an adjacent mitral regurgitation jet, failing to take an elevated proximal (LVOT) velocity into account, and changes in cardiac output and blood pressure all distort severity. Doppler malalignment of more than 15-20 degrees underestimates Vmax and gradient (and so underestimates severity).
Severity is underestimated in low cardiac output states (LV dysfunction, significant MR/MS) and with sequential stenoses, and overestimated in high cardiac output states. Velocity and gradient are flow-dependent and may underestimate severity in low-flow/low-output states.
How do blood pressure and afterload affect the assessment of aortic stenosis?
Severity is flow-dependent, so it should be graded with the blood pressure controlled. Uncontrolled hypertension adds afterload that blunts transvalvular flow, lowering the velocity and gradient and underestimating severity; the distortion can run either way, so a reading taken at high pressure is simply unreliable.
If the systolic pressure is high at the time of the study, repeat the assessment once it has been brought down towards a target of 130–140 mmHg systolic. GuidelineRing L, et al. Echocardiographic assessment of aortic stenosis: a practical guideline from the British Society of Echocardiography. Echo Res Pract 2021;8:G19–G59.
How do you measure aortic stenosis severity in atrial fibrillation or an irregular rhythm?
Beat-to-beat variation in filling changes transvalvular flow, so a single beat is unreliable. Average 5–10 consecutive beats for the peak velocity, mean gradient and the LVOT and AV velocity–time integrals.
Alternatively, match beats: pair an LVOT trace and an AV trace that follow a similar preceding R–R interval, so the continuity equation uses comparable flow on both sides.
Discordant & low-flow, low-gradient AS
Recognising low-flow, low-gradient AS
What is low-flow, low-gradient (LFLG) aortic stenosis?
- A valve area in the severe range — ≤1.0 cm² (indexed ≤0.6 cm²/m²).
- A low gradient — mean <40 mmHg, peak velocity <4 m/s.
- Low transvalvular flow — stroke-volume index (SVi) <35 mL/m².
So the valve is genuinely severe, but the low flow keeps the gradient down — it is easily under-graded as moderate.
Why can severe aortic stenosis show only a low gradient?
- The gradient and velocity are not direct measures of the valve; they reflect how much blood is driven across it — the flow.
- For a given valve, more flow produces a higher gradient and less flow a lower one.
- In critical illness — shock, sepsis, impaired LV function, post-arrest — stroke volume falls, so transvalvular flow and the gradient fall with it, and a severe valve is read as moderate.
- Because valve area is independent of flow, it remains the reliable measure of severity when the gradient is not.
What are the four flow–gradient patterns of aortic stenosis?
When the valve area is severe (≤1.0 cm²), the gradient and flow do not always agree. There are four recognised combinations of gradient, flow and ejection fraction — three are severe, one usually is not:
| Pattern | Gradient | Flow & EF | Severity |
|---|---|---|---|
| High-gradient severe | High (mean ≥40 / V ≥4) | Any | Severe |
| Normal-flow, low-gradient | Low |
| Usually moderate |
| Classical LFLG | Low |
| Likely severe |
| Paradoxical LFLG | Low |
| Likely severe |
What is the difference between classical and paradoxical LFLG?
Both have a severe valve area with a low gradient because the flow is low. They differ in why the flow is low, told apart by the ejection fraction:
- Classical LFLG — reduced EF (<50%): a weak, dilated ventricle cannot generate an adequate stroke volume, so flow and gradient are low.
- Paradoxical LFLG — preserved EF (≥50%): a small, hypertrophied, stiff ventricle fills poorly, so stroke volume is low despite a normal EF.
[IMAGE: side-by-side ventricles — dilated thin-walled weak LV (classical) vs small thick-walled stiff LV (paradoxical)]
What do you do about low-flow, low-gradient AS at the bedside?
- Do not assign a definitive grade in a haemodynamically unstable patient — the gradient will mislead.
- Recognise the pattern and rely on the valve area, the 2D appearance (heavy calcification, restricted opening) and the stroke-volume index.
- Optimise haemodynamics, then re-image once flow is restored.
- Definitive confirmation is an elective, outpatient process — not a bedside one.
- When stable, the elective sort-out is by ejection fraction: reduced EF → dobutamine stress echo; preserved EF → CT aortic-valve calcium score (neither is a bedside test).
Associated findings & prognostic markers
Associated findings & prognosis
Which associated echocardiographic findings should be assessed in aortic stenosis?
LV size, systolic function (assess long-axis too — it may be impaired despite a normal EF), hypertrophy / indexed LV mass; degree of pulmonary hypertension; the other valves and the aortic root / ascending aorta. Moderate AS with more than mild AR should be treated as severe valve disease. Severity is underestimated in low-output states (LV dysfunction, significant MR/MS) and with sequential stenoses, and overestimated in high-output states.
IMAGE TO SOURCE — real echo: PLAX showing concentric LVH and dilated LA secondary to AS [echo]
Which 2D and Doppler features and prognostic markers indicate severe disease?
Heavy calcification with restricted cusp motion (without significant calcification, important AS is unlikely); a late-peaking / slow-acceleration CW envelope; very high gradients (very severe Vmax ≥5, mean ≥60); Vmax progression >0.3 m/s/year; LVEF <55% (intervention cut-off <50%); GLS more positive than −14%; indexed LV mass >110 g/m² (men) / >99 g/m² (women); pulmonary hypertension; low SVi (<35) and AVA <0.8 cm². GuidelineRing L, et al. Echocardiographic assessment of aortic stenosis: a practical guideline from the British Society of Echocardiography. Echo Res Pract 2021;8:G19–G59.
IMAGE TO SOURCE — real echo: GLS bullseye / strain example, plus LV-mass measurement [echo]
Aortic stenosis in the critically ill
At the bedside
Why does severe aortic stenosis matter at the bedside?
A severely stenotic valve is a fixed obstruction: the LV cannot increase output across it, and the hypertrophied, stiff ventricle depends on tight loading conditions. Small changes a normal heart shrugs off can tip it into a spiral of hypotension, falling coronary perfusion and arrest. ReviewChacko M, Weinberg L. Aortic valve stenosis: perioperative anaesthetic implications. BJA Educ 2012;12(6):295–301.
- Preload — keep it up; the stiff LV needs good filling. Treat hypovolaemia, but watch for pulmonary oedema.
- Afterload — maintain SVR. Vasodilators — and the vasodilatation of induction agents or neuraxial block — drop coronary perfusion pressure dangerously; have a vasopressor ready.
- Rhythm — keep sinus rhythm; the atrial kick contributes a large share of filling to a stiff LV. Treat new AF urgently.
- Rate — avoid tachycardia (shortens diastolic filling and coronary perfusion) and severe bradycardia (a fixed stroke volume means output falls).
How can severe aortic stenosis be missed in the shocked or low-output patient?
Vmax and the mean gradient are flow-dependent. In a low-output state — sepsis, poor LV, post-arrest — transvalvular flow falls and the gradient drops, so severe AS can read as moderate or even mild.
- Look at the valve and the area, not just the gradient: a calcified, barely-opening valve with AVA <1.0 cm² and a low gradient is low-flow, low-gradient severe AS until proven otherwise.
- Check the stroke-volume index (SVi <35 mL/m² = low flow) and LV function.
- Resolve it with dobutamine stress echo (if EF is low) or a CT calcium score — not by trusting the gradient.
Which ICU situations destabilise a patient with severe aortic stenosis?
- New AF or tachyarrhythmia — loss of the atrial kick plus short filling causes an abrupt fall in output; restore rate or rhythm urgently.
- Sepsis / vasoplegia — low SVR drops coronary perfusion across the fixed lesion; early vasopressor, cautious with vasodilators.
- Induction & intubation — sympatholysis and positive-pressure ventilation cut preload and SVR; pre-optimise, induce slowly, vasopressor ready.
- Neuraxial anaesthesia — sympathetic block causes the same afterload and preload drop; use with great caution.
- Non-cardiac surgery — severe symptomatic AS markedly raises perioperative risk; in selected cases consider valve intervention first.
- Decompensation / cardiogenic shock — vasopressors to hold perfusion, avoid pure vasodilators; balloon valvuloplasty or urgent TAVI as a bridge.
